Wood Grain Metal for Garage Door Panels
Coated and laminated steel coil for sectional, roller and insulated garage-door panels— selected by surface route, pattern direction, roll forming, outdoor exposure, foam or adhesive compatibility and the approved production sample.
Specify the Material by Garage-Door Construction
Sectional panels, roller profiles and insulated door systems do not place the same demands on the steel. The drawing, profile geometry and final exposure should be reviewed before selecting the surface and substrate.
Sectional Garage Door Panels
Large visible panels require pattern continuity, color and gloss control, flatness, roll-forming compatibility and protection during stacking and installation.
Roller and Shutter Profiles
Narrow profiles may require repeated bending and tighter radii. The surface must be validated for cracking, whitening, powdering, scratching and pattern distortion.
Insulated and Foam-Filled Panels
The visible surface and back coat should be reviewed with the foam, adhesive, curing process, panel press and final outdoor environment.
Supply boundary: This page covers B2B material supply for manufacturers and panel formers. It does not offer local measurement, installation, repair or residential garage-door replacement services.

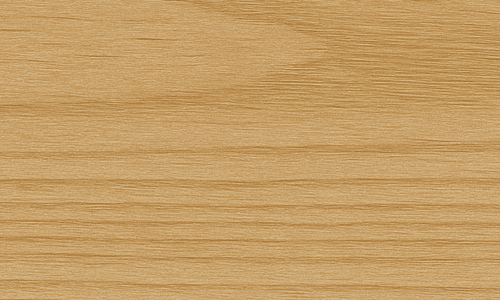

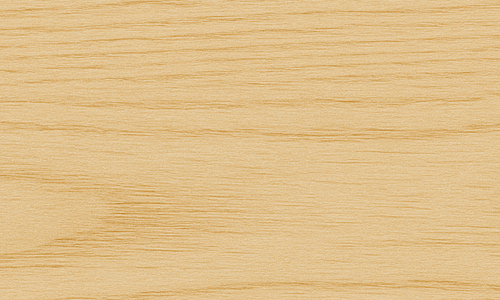

Wood Grain Pattern Examples
These images show design directions from the existing collection. Confirm current availability, surface route, pattern repeat, gloss, texture and production sample before ordering.
View the broader material range on the wood grain metal page.
Separate the Decorative Surface from the Outdoor System
A wood-grain appearance does not define the complete material. Surface route, substrate, metallic coating, back coat, protective film and final profile all affect performance.
Printed or Coated Wood Grain
A printed paint system can provide wood-look patterns with a protective clear layer. Suitability depends on the complete coating structure and exposure.
- Confirm ink, clear coat, gloss and texture
- Review pattern direction and repeat after profiling
- Validate bend and scratch behavior using the actual grade
- Match the back coat to foam or adhesive where required
Review the product family on the printed steel page.
Laminated Wood Grain Surface
A decorative film can provide deeper texture or a different visual effect, but only an outdoor-rated film system should be considered for weather-exposed garage doors.
- Confirm film type, adhesive and substrate as one structure
- Check UV, moisture and formed-panel adhesion requirements
- Validate whitening, cracking and delamination at bends
- Do not assume all PVC or PET films are exterior grades
Compare laminated materials on the laminated steel sheet page.
What to Confirm for Garage Door Panel Steel
This is a purchasing framework, not a universal fixed specification. Final values should follow the profile drawing, roll-forming line, outdoor environment and customer standard.
| Parameter | Why It Matters | Information to Confirm | Approval Evidence |
|---|---|---|---|
| Panel Type | Sectional, roller and insulated panels have different forming and assembly needs. | Profile drawing, rib pattern, joint type and visible side | Drawing and formed trial |
| Steel Thickness | Affects stiffness, roll forming, springback, panel weight and cost. | Nominal thickness and tolerance required by the line | Material certificate and incoming inspection |
| Substrate | Influences forming, corrosion protection and surface appearance. | Steel grade, metallic coating and surface condition | Agreed specification and lot record |
| Surface Route | Printed coating and laminated film behave differently in forming and weather exposure. | Coating or film structure, gloss, texture and clear layer | Physical sample and technical data |
| Pattern Direction | Incorrect orientation or repeat can create visible mismatch after panel assembly. | Machine direction, repeat length and panel layout | Layout approval and formed panel |
| Color Control | Adjacent wide panels make batch differences easier to see. | Reference sample, measurement method, viewing conditions and tolerance | Signed sample and batch inspection |
| Forming | Ribs, folds and joints may cause coating cracks, film whitening or surface damage. | Bend radii, profiling speed, tooling condition and forming temperature | Representative roll-forming trial |
| Back Coat | May affect foam, adhesive or panel-system bonding. | Foam or adhesive chemistry and curing conditions | Bonding trial and customer acceptance |
| Outdoor Exposure | Corrosion and weathering depend on more than the wood-grain appearance. | Climate, salt deposition, shelter, orientation, cut edges and warranty target | Customer test standard and system approval |
| Slitting & Coil Data | Incorrect width, burr, coil ID or weight can disrupt the roll-forming line. | Slit width, tolerance, burr limit, ID, OD, coil weight and winding direction | Processing record and packing list |
Do not convert one salt-spray result, substrate label or coating name into a guaranteed field life. Outdoor performance also depends on the complete material system, cut edges, fasteners, drainage, installation, maintenance and the actual environment.
Common Problems in Wood Grain Garage Door Production
Most complaints come from an incomplete material approval process rather than from the phrase “wood grain steel” itself.
Appearance and Pattern Risks
- Pattern direction reversed between panels or production batches
- Repeat lines becoming visible across a wide sectional door
- Color, gloss or texture mismatch between adjacent panels
- Protective-film residue, impressions or surface scratches
- Wood grain stretched or distorted around deep ribs
Forming and Outdoor Risks
- Paint cracking, powdering or film whitening at tight bends
- Delamination near cut edges, joints or profile corners
- Back coat incompatible with foam or adhesive
- Cut-edge corrosion or damage introduced during installation
- Outdoor film or coating selected without exposure validation
Use Real Panels to Approve Forming and Appearance
Flat swatches are useful for choosing a direction, but the final decision should be based on representative roll forming, panel assembly and surface inspection.
Existing wood grain door application image
Quality-control methods and available inspection records can be linked from the steel sheet testing page.
From Pattern Selection to Approved Production
Trial timing and quantity depend on pattern availability, material structure, specifications, sample destination and the customer's production schedule.
Define the Door System
Share profile drawing, panel type, line data and final market.
Select Pattern Direction
Choose color, grain, gloss, texture and machine direction.
Confirm Material Structure
Agree on substrate, surface route, back coat and supply form.
Run a Forming Trial
Check profiling, joints, surface condition and panel assembly.
Retain the Standard
Keep the signed sample, drawing, tests and production-lot records.
Information Needed for a Useful Quotation
A quotation based only on “wood grain garage door coil” is not enough. The line and panel data determine whether the material can be supplied and approved correctly.
Production Data
Specification Data
Order Data
They vary with the pattern, surface route, substrate, thickness, width, production schedule, stock status and delivery destination. Confirm them against the actual inquiry rather than using one universal number.
Common Questions About Wood Grain Garage Door Steel
Can wood grain metal be roll formed without cracking?
Which substrate is best for a coastal garage-door project?
Is laminated wood grain suitable for outdoor garage doors?
How should color consistency be specified?
Can you supply narrow slit coil for a roll-forming line?
Do you provide free samples in a fixed number of days?
Request Patterns, Samples or a Trial Specification
Send the panel drawing, roll-forming data, target wood grain, thickness, slit width, substrate requirement, outdoor market, trial quantity and destination.
- Pattern direction, gloss and texture review
- Printed or laminated surface-route discussion
- Substrate, back coat and outdoor-system review
- Slitting, coil ID, coil weight and packaging requirements
- Representative roll-forming and sample approval plan
