Whiteboard Steel Coil Manufacturer
Professional Prepainted Steel for Dry Erase Whiteboards, Green Chalkboards, and Blackboards. Offering 4H Hardness, Anti-Ghosting Surface, and One-stop Accessory Supply.
What is Professional Whiteboard Steel?
Whiteboard steel sheets (industry term: Prepainted Steel for Writing Surfaces) are the core material for manufacturing durable educational and office boards. Unlike non-magnetic aluminum or cheap melamine, our product features a robust Galvanized Steel (GI) substrate coated with a specialized dry-erase resin.
This structure provides two critical advantages for manufacturers: Magnetic Receptivity and Superior Rigidity. It is designed to be laminated onto core materials (like MDF, honeycomb, or corrugated cardboard) to create flat, warp-free finished boards that can hold magnetic accessories firmly.
Key Features to Consider
The top coating defines the quality. We use a high-polymer resin cured to achieve a 4H Pencil Hardness. This ensures the surface resists ghosting (ink residue) and scratching, even after years of daily use in classrooms .
Since the base is steel (Iron/Zinc alloy), magnets stick to it naturally. This is a "must-have" feature for modern teaching boards, allowing users to attach notes and visual aids without pins or tape .
Thickness: 0.13mm - 0.60mm (0.3mm is standard for schools).
Back Coating: Epoxy primer designed for strong adhesion to glue/cores.
Film: Protective film (clear/blue/grid) included to prevent damage during processing.
Choose Your Writing Surface

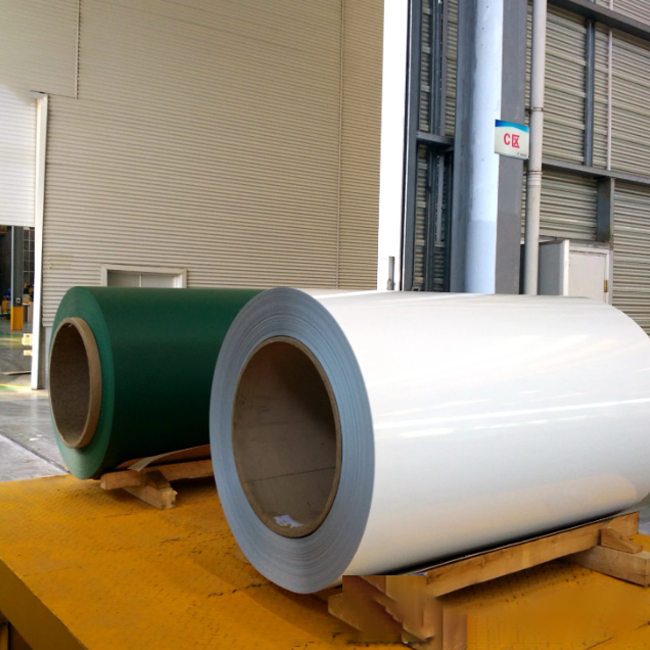

We supply high-quality raw steel coils and sheets. Custom sizes available.
See Our Factory in Action
From decoiling to shearing, we control every step to ensure flat, scratch-free sheets.
1. Decoiling
2. Shearing
3. Gluing
4. Stock
The Anatomy of Quality
Writing board steel is specialized functional material. We use a 4H pencil hardness curing process.
Specifications
- Surface: Specialized resin for smooth writing.
- Substrate: Galvanized Steel (GI) for magnetism.
- Backing: 0.16-0.18mm GI sheet available.
- Film: Grid-printed (2x2cm) protective film available.
Support for Manufacturers
We prepare materials to fit your production line perfectly (Decoiling → Cutting → Gluing).
Factory Ready
- Coil Weight: 2 - 3 Tons (Easy for small decoilers).
- Flatness: Tension leveled for smooth pressing.
- MOQ: Small start supported (500 sheets / 2 tons).
- Cutting: Cut-to-length service available.
Complete Accessories Supply
Save shipping costs by consolidating your order. We supply all components.
Standard 5.9m length. Approx 65g/meter. Silver/Black.
Matching plastic corners. Durable and impact resistant.
Dedicated adhesive for bonding steel to MDF/Cardboard.
Aluminum foldable trays. Cut to size (60-90cm).
Industry Insights
View All Articles →
Formula: 1000 / 7.85 / Thickness / Width. Estimate coil yield accurately.
From decoiling to gluing. A guide for new manufacturers.
Comparing weight and flatness for core materials.
FAQ
Q: How do you calculate meters per ton?
Formula: 1000 ÷ 7.85 ÷ Thickness (mm) ÷ Width (m).
Q: Can I buy small quantities?
Yes. We support start-ups with low MOQ (500 sheets or 2 tons).
Tell us your Profile type, Thickness, and Color (RAL). We will provide a CIF price within 24 hours.
Request Sample & Price
Tell us: Type + Thickness + Quantity
