Camouflage Pattern Metal — Camo Sheet Metal & Metal Siding
Everesteel manufactures factory-direct camouflage pattern metal — pre-coated steel and aluminum sheet with camo patterns applied through advanced coil coating or transfer printing. Used for camo metal siding, roofing, vehicle panels, hunting hides, and outdoor structures. The camouflage look helps these panels blend into any environment.
Camouflage Pattern Metal — Built for Outdoor Performance
What Is Camouflage Sheet Metal?
Camouflage sheet metal panels are made of steel or aluminum that get a camouflage pattern added to them. This is done with paint, powder coating, vinyl wraps, or by printing right on the panels. These ways help to make different looks for many places.
The main point is to help the panels hide or blend in with what is around them. People use these panels for military gear, covers for rugged vehicles, hunting hides, and even when they want something to look at eye catching style. You still get all the strength of these panels, and the camouflage look also helps things stay hidden.
How well the pattern works depends on how much the look matches where it is used, like in the woods, in the snow, or on dry ground. Factories can put the pattern right onto the panels, or they can put on a printed film with the look already there.
Our Camouflage Coil Coating Production Process
As a professional camouflage metal manufacturer, Everesteel uses a continuous coil coating line. The process: uncoiling → chemical pre-treatment → primer application → camo pattern printing (multi-roller offset or digital) → topcoat application → oven curing at 230°C. This industrial process delivers a finish far superior to site-applied paints or wraps — the camo pattern becomes part of the steel surface.
Continuous Coating Line

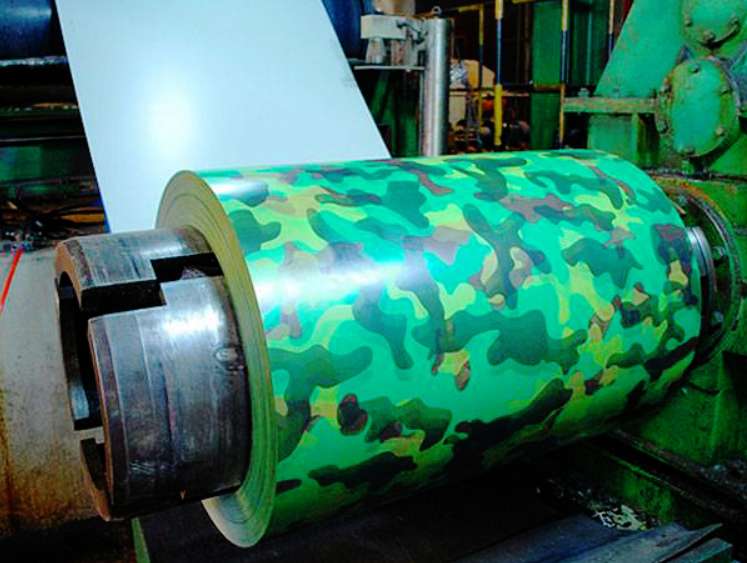

Camo Pattern Printing

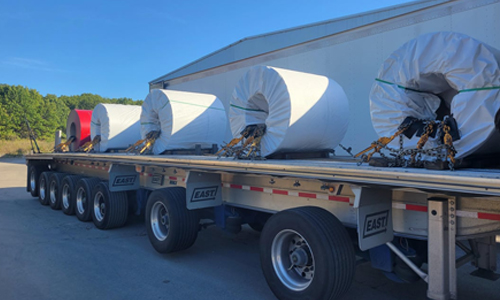

Ready for Export
Camouflage Design PPGI Specifications
Strict tolerance control (±0.02mm thickness) to match your roll-forming or profiling line requirements.
*General reference code. Verify with your local customs authority.
Includes coating thickness, salt spray, and adhesion test data.
JIS G 3302-1998 · ASTM A653 / A653M · GB/T 2518-2008 · Q/CHG3-2005 · FIN 10142 · DX510 · SGCC (DX520+Z)
| Commodity | Camouflage Design PPGI (Pre-painted Galvanized Iron) |
|---|---|
| Width | 600 – 1,250 mm |
| Thickness | 0.14 – 0.8 mm |
| Standard | JIS G 3302-1998, ASTM A653/A653M, GB/T 2518-2008, Q/CHG3-2005, FIN 10142, DX510, FIN 10142, SGCC (DX520+Z) |
| Coil Weight | 3 – 5 MT (Metric Tons, can be customized) |
| Technique | Hot-dipped galvanized, Alu-Zinc coating, Pre-painted, Color coating, etc. |
| Zinc Coating | 80 – 275 g/m² |
| Tolerance | Thickness: ±0.02 mm · Width: ±2 mm |
| Surface Processing | Regular spangle, Mini/mixed spangle, Zero spangle, Bright spangle, etc. |
| Application | Steel structure, Building exterior, Roofing, Household appliances, Tube making, Camo metal siding, Hunting hides, Vehicle panels |
| Product Feature |
Good performance · High straightness High evenness and surface finishing Uniform thickness · Easy for coating process High tensile strength · High pressing property Low yield point |
| Package | Wrapped with waterproof paper inside, Galvanized steel covered, Tied by steel strip, Supported by pallet, then loaded in container or per customer's requirements. |
| Delivery | Normally 10–15 days after receipt of deposit or according to quantity. |
Types of Camouflage Patterns Available on Sheet Metal
The use of camouflage patterns on metal can be a good choice for many reasons. This style works well in a lot of places and fits different looks, so there is something for everyone. A lot of suppliers keep a big set of these options, and some will let you choose your own customization options.

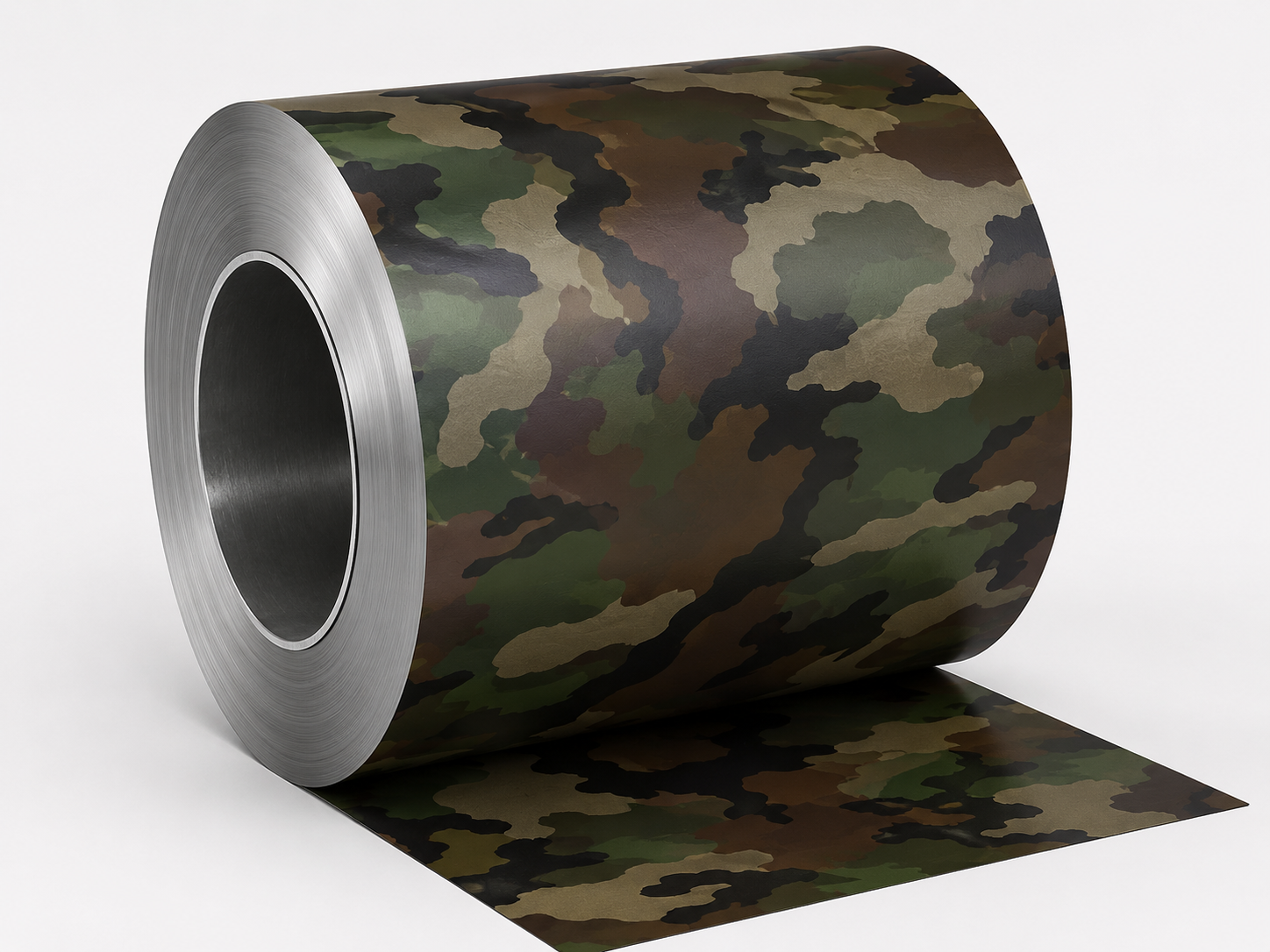

Classic styles using shapes like leaves and branches — green, brown, and black. M81 Woodland is a good example. Best for forest environments.

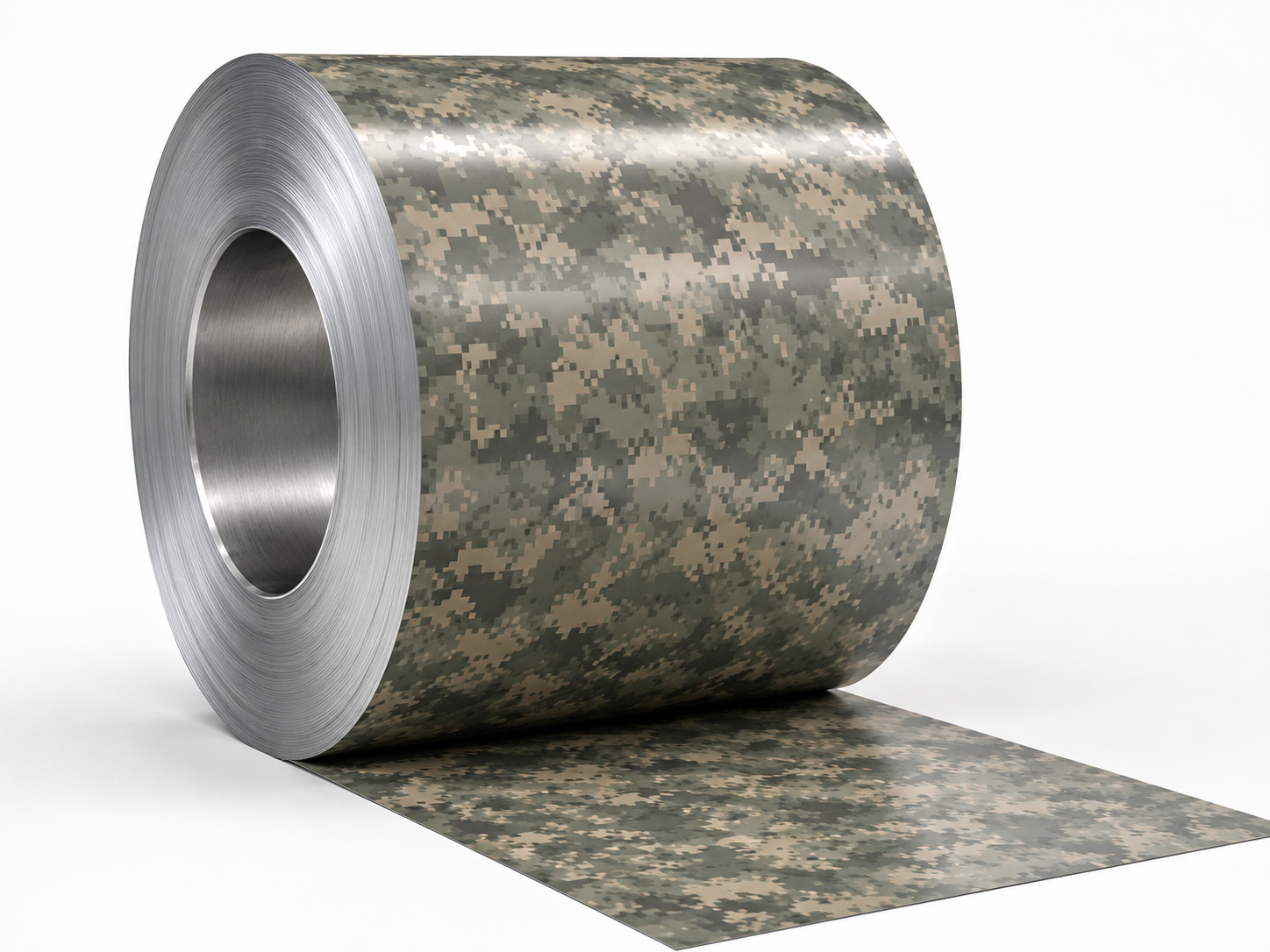

New-style patterns using tiny blocks of color — MARPAT, ACU, CADPAT. Works at many distances and for several types of unit. Popular names: Multicam, ACU, CADPAT.

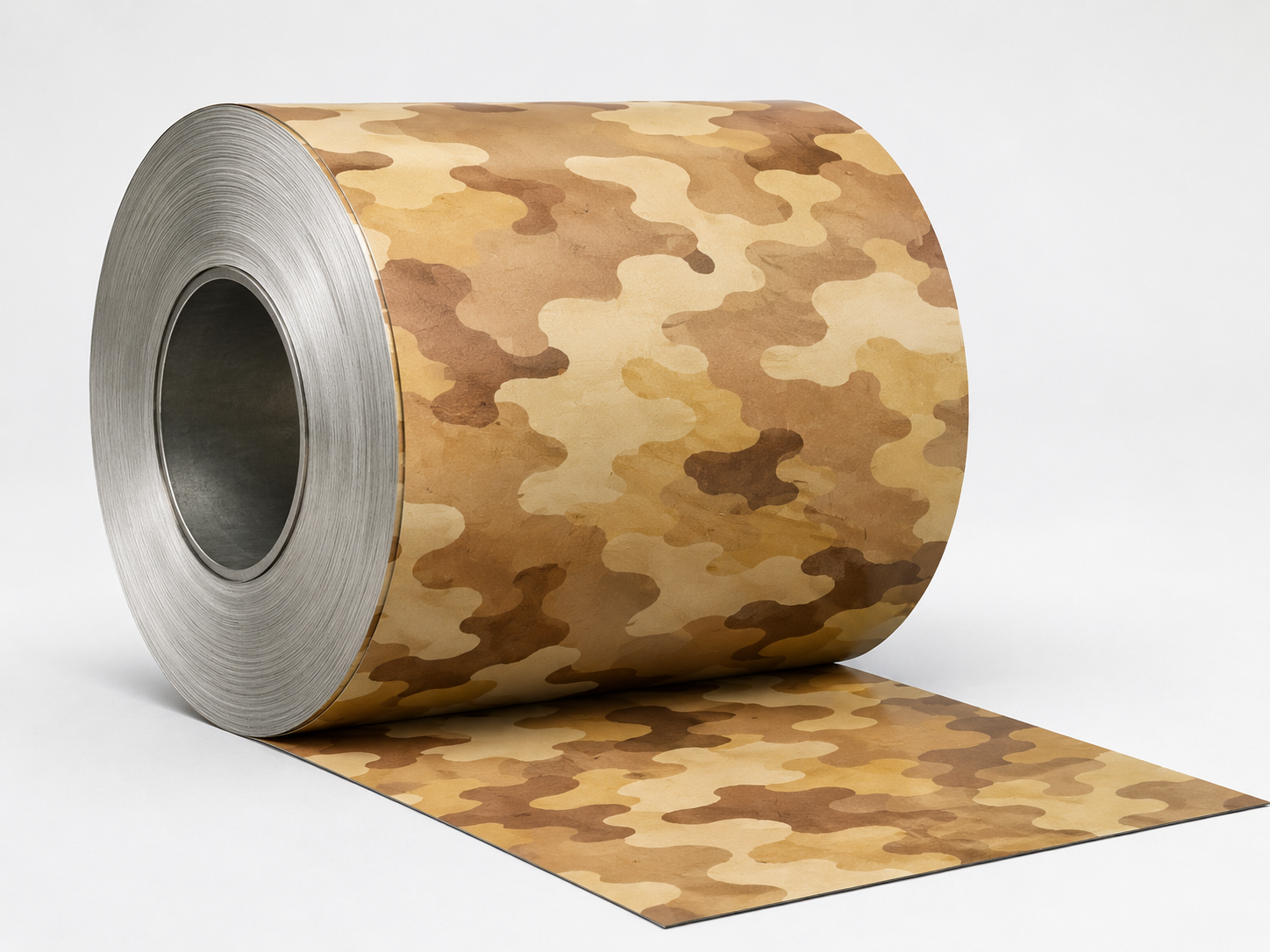

Made with colors like tan, brown, and old yellow or pink shades. A good price for dry, arid city, or rocky spots — Realtree MAX-5 or Mossy Oak Shadowgrass Blades.

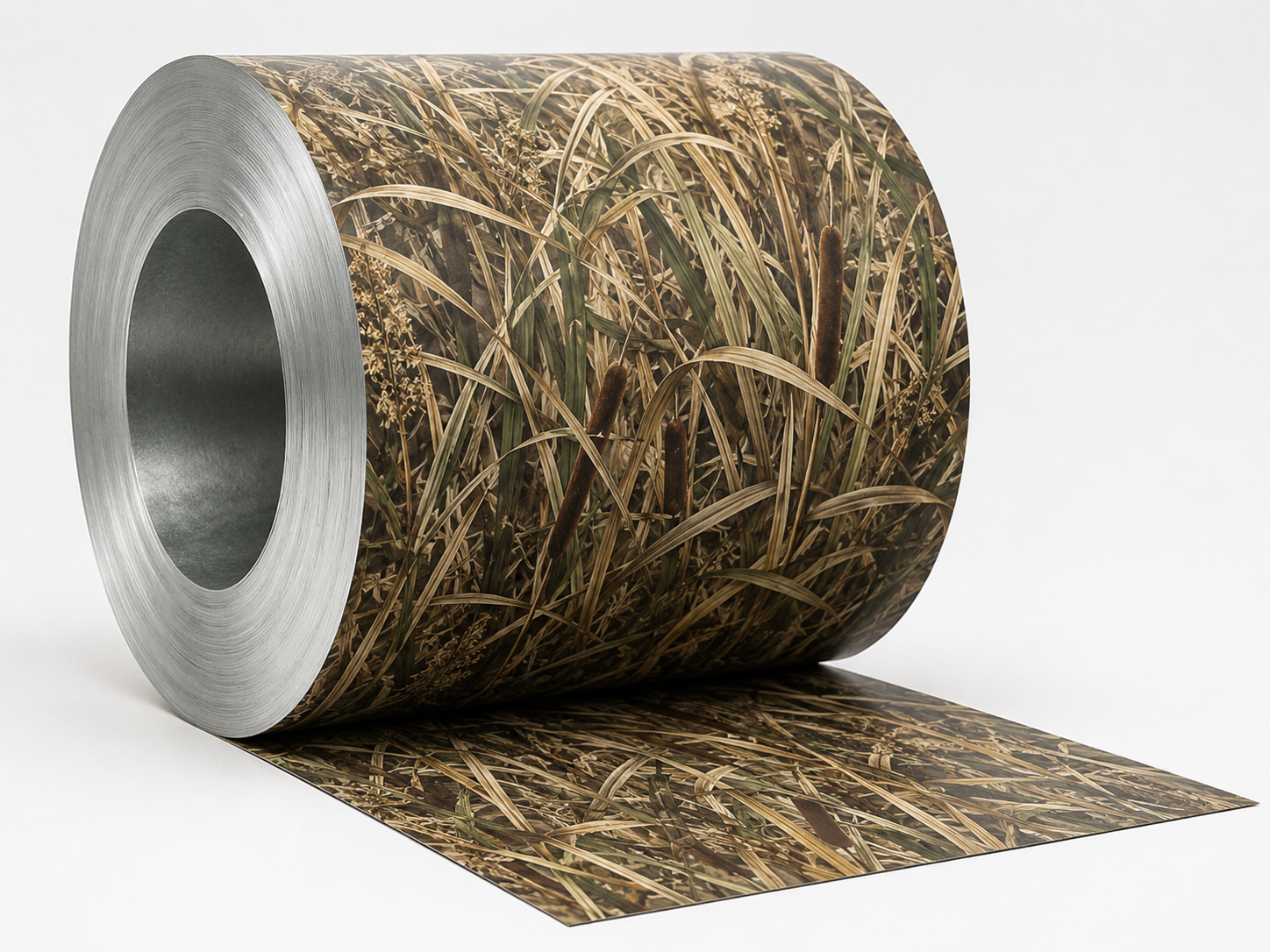

Uses pictures of things like reeds, grasses, and cattails — Realtree MAX-5P or Mossy Oak Shadow Grass Blades. Great for hunting hide or duck blind construction.
Applications & Use Cases
From camo metal siding to roofing, vehicle panels, and hunting blinds — our camouflage sheet metal serves both construction and outdoor recreation markets.

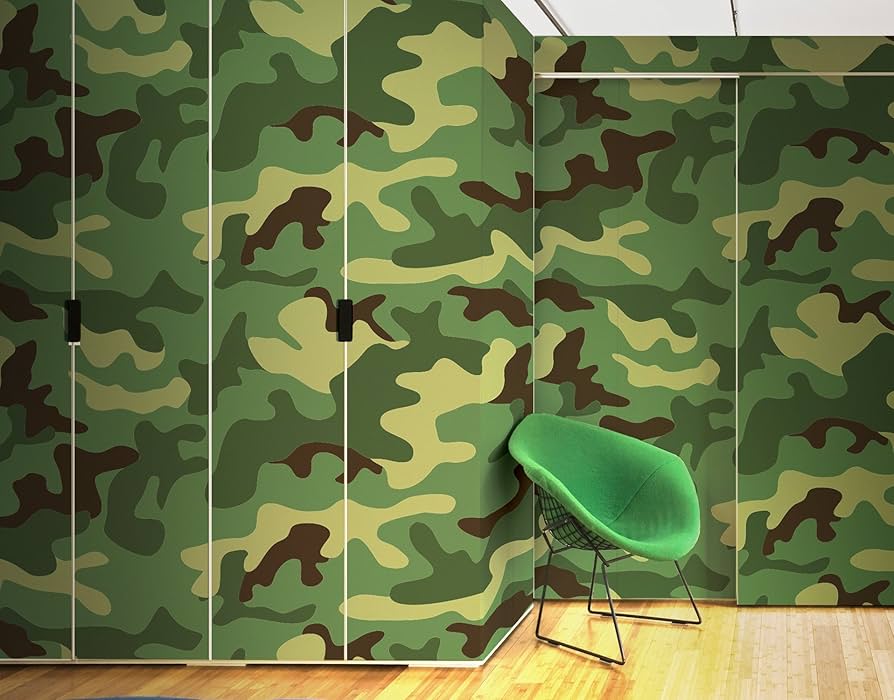

Camo Metal Siding & Wall Panels
Exterior wall cladding for hunting cabins, rural structures, and prefab buildings. Blends into woodland or rural environments.

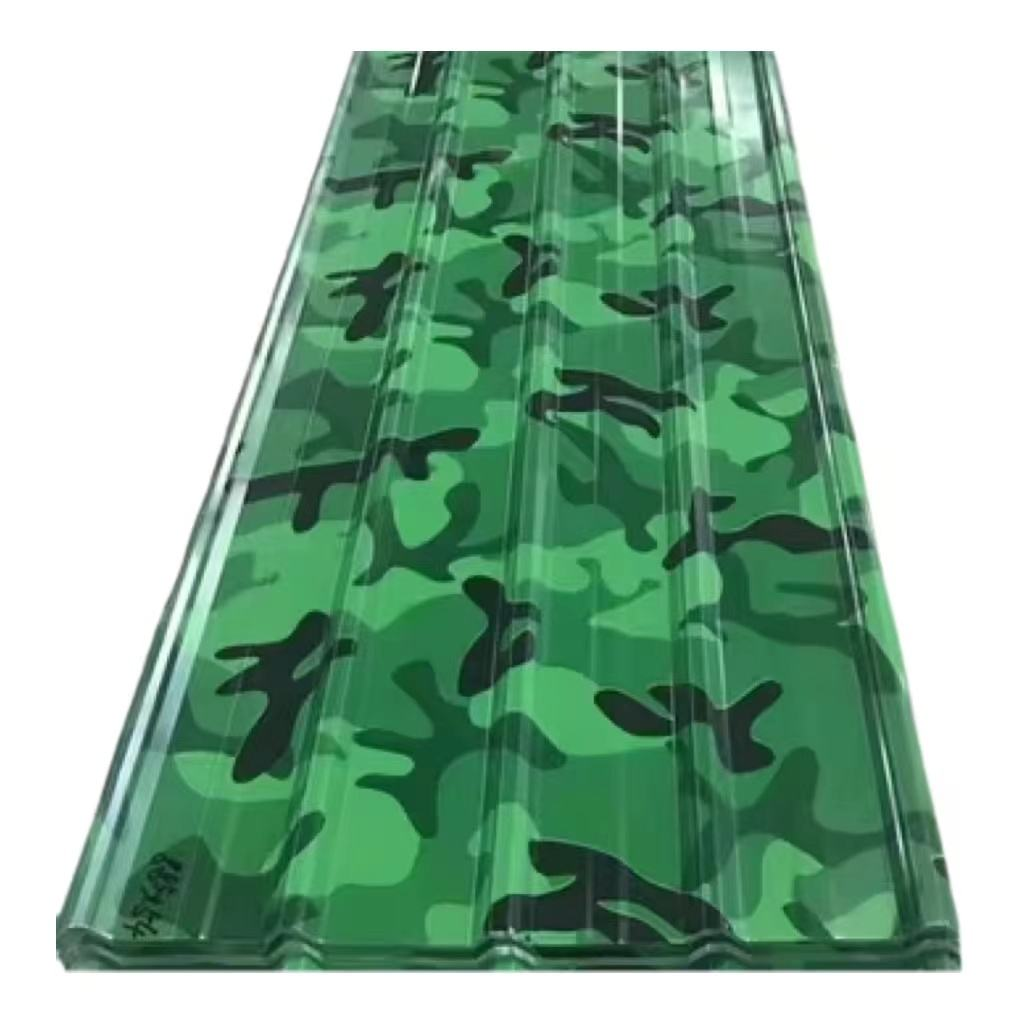

Camouflage Metal Roofing
Corrugated or flat camouflage metal roof sheets for sheds, hunting blinds, military structures, and industrial buildings requiring low visual profile.

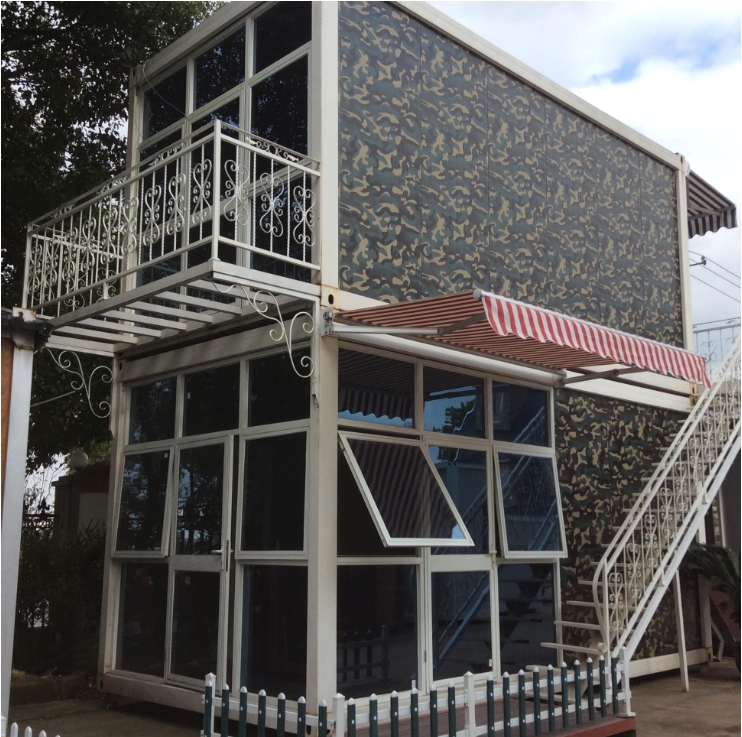

Prefab & Container Structures
Camo metal sheeting for container homes, modular buildings, and prefab construction where visual concealment or aesthetic blending is required.
Why Choose Factory-Applied Camouflage Over DIY Painting or Post-Finishing?
For B2B clients, picking factory-applied pre-finished camouflage sheet metal gives you big advantages. It is much better than painting it on your own or using other finishing approaches.
The coat is done in the factory with tight checks. This makes sure the surface is well-prepared and paint sticks nicely. The finish will not chip, peel, or flake like many paint jobs done at home.
Result: No re-coating for 10–15 years
With factory coating, you get the same look and feel every time. This means your pattern and color will match across several pieces of camo sheet metal, keeping your brand looking good.
Color consistency: ΔE <1 batch-to-batch
The special coatings in durable camouflage metal are made for outdoor use. They stop UV rays from making colors fade and also help keep out water, changing heat, and dirt from the air.
UV tested: 500+ hours QUV accelerated test
This usually leads to less making-ready work, which means you do not have to waste time getting the surface set, adding base costs, putting on patterns, or waiting for paint to dry, as with other steps.
Typical site labor saving: 40–60%
A finish set at the factory does not have trouble you see in home paint jobs, like drips, thin places, or pattern mix-ups. You get a steady, professional camo finish every time.
Surface quality: ISO Class A standard
Coating inside a central factory is done with more care for the air we breathe, leading to lower amounts released. The factory finish is often given in favor of using things that are already made for a long time and looks good.
Low VOC — RoHS compliant
Performance & Durability Data
Camouflage Sheet Metal: Your Guide to Pre-Finished Patterns & Uses
This guide helps you learn about camouflage sheet metal, different pre-finished patterns, and ways you can use it. You will see how to pick the right style for your project, get tips about what works well and why many people pick these pre-finished sheets. Find out where you can use them and see how simple it is to work with this option. No matter if you want it for your home, work, or something new, this guide will give you the info you need.
Camouflage steel is a product that many B2B companies look for. It helps things stay hidden, lasts a long time, and has a look that sets it apart from other stuff. This new choice often uses camo printed steel, like camouflage PPGI or aluminum. It comes ready to use. You can use it when you want something to work well and still look special.
In this guide, you will find out what pre-finished camouflage sheet metal is. You will read about the designs you can get. It will also show why it is better compared to do-it-yourself ways. There is a part that explains where and how people use it. You will also get tips on how to find good patterned steel coil.
Key point: "Camo sheet metal," "camouflage sheet metal," "camo metal siding," and "camouflage sheeting" all describe the same product category — pre-coated or printed steel and aluminum with a camouflage surface pattern.
What Exactly Is Pre-Finished Camouflage Sheet Metal?
Pre-finished camouflage sheet metal means you get the sheets made with steel (Camouflage Pattern Metal such as PPGI or PPGL), or sometimes aluminum. These go through a finishing process in the factory, so the camouflage pattern is already on the sheet. This is not the same as painting it later or sticking something on. The camouflage print is made on the sheet before you get it.
The process uses a special paint that is made for high performance. It goes on in several thin layers. First, there are primers. These help the paint stick to the surface well and stop rust from starting. Next, base coats give deep color. After that, fine printing ways put on the camo pattern. A clear topcoat is added last. This makes the finish hard and helps keep it safe.
This industrial camo coating keeps the pattern bright, strong, and blocks out water and sun. The camo steel coil or sheet is now ready to use right away in making products. You do not need to treat the surface more. This gives it an advantage over using paint at home or after the steel is produced.
The Science Behind the Print: How Is Camouflage Achieved on Metal Sheets?
The way people make the best and easy-to-use camouflage sheet metal starts with a special, closely watched way called coil coating. This camouflage printing process helps the look stay nice and strong for a long time. It makes sure the finish will stay good and keep looking right all year.
Step-by-Step: The Coil Coating Camouflage Process
- 1 Metal Surface Prep: The steel panel (known as PPGI/PPGL, for how they stop rust) or aluminum are used. The rolls are opened up and washed in several steps. A special chemical is put on as well. This makes the clean surface and good for paint to stick to.
- 2 First Coat Layer: A first paint layer goes on the clean surface next. This stops rust, makes a smooth base, and helps get everything set for more paint.
- 3 Base Color Coat: Next, a base color goes on. This color is often one of the main colors for the camo look. It helps give the feel of different levels and makes the pattern feel deep.
- 4 Camo Pattern Printing: Next, the camo pattern is put onto the surface. This is usually done with high-end machines using engraved rolls or modern digital printers. Both ways help keep smaller parts and colors more true. This step really helps keep the quality of PPGI camo manufacturing strong.
- 5 Clear Top Layer: A clear light coat is put on after the pattern prints. A strong plastic like PVDF or SMP is often used and sealed to make it hard. This clear paint is very important for helping the finish and keeping sure it lasts.
This nonstop and fully automatic coil coating camouflage process gives you a finish that becomes a true part of the surface. It is much better than paints or films that you put on after. You can read more about coating ways from experts at places like the National Coil Coating Association.
Camo Metal Siding & Camouflage Sheeting — Exterior Applications
For contractors, builders, and architects specifying camo metal siding for exterior use, factory-coated camouflage PPGI is the most durable and cost-effective solution. Unlike site-applied camo paint, factory-coated panels maintain their pattern for 10–15 years in outdoor environments without re-coating.
Camouflage sheeting is also widely used in agricultural, rural, and recreational construction — hunting blinds, duck blinds, equipment storage, and rural cabins where the structure needs to blend visually into the surrounding landscape. Available in woodland, marsh, desert, and snow patterns for different regional environments.
For camouflage metal roofing, the same factory-coated PPGI or PPGL coil can be roll-formed into corrugated profiles or trapezoidal panels. The camo pattern is applied before profiling — so the finished roofing sheet has the camouflage integrated into the metal, not applied after.
Specification note for buyers: For exterior siding or roofing applications, always specify Z100 or higher zinc coating and SMP or PVDF topcoat. Z40 + PE is an interior-grade specification and will not provide adequate outdoor durability for camo metal siding or roofing.
How to Buy Camouflage Sheet Metal from a Factory
For procurement teams, distributors, and facade fabricators sourcing camo sheet metal at volume, factory-direct supply is significantly more cost-effective than trading company routes. To receive an accurate quote, provide the following:
- Substrate: PPGI (galvanized) or PPGL (galvalume) — based on corrosion environment
- Thickness: 0.14–0.8mm for camo sheeting; thicker for structural siding panels
- Width: 600–1,250mm standard; match to your profiling or cutting line
- Zinc coating weight: Z80 minimum for outdoor, Z100+ recommended for siding and roofing
- Topcoat: SMP (10–15yr outdoor) or PVDF (20yr, coastal and high-UV)
- Pattern: Woodland, digital, desert, waterfowl, snow, or custom/OEM
- Quantity: In tons or m². MOQ is 3 MT per pattern/spec combination.
- Destination port: Required for accurate freight calculation
FAQ About Camouflage Pattern Metal
What is camouflage sheet metal?
Is "camo metal siding" the same as "camouflage sheet metal"?
What camouflage patterns are available?
Can camouflage metal be used for roofing?
What is the minimum order quantity?
How long does factory-applied camouflage last outdoors?
Do you support OEM or custom camo pattern printing?
Have a specific application or pattern requirement? Contact our technical team →
Related Technical Guides
Expert guides on coating selection, pattern printing, and sourcing pre-finished steel from factory.
PPGI vs. PPGL: Which Is Better for Exterior Camo Siding?
Galvanized vs. galvalume base — compare corrosion resistance, service life, and cost for camo metal siding and roofing applications.
Read Full Guide →

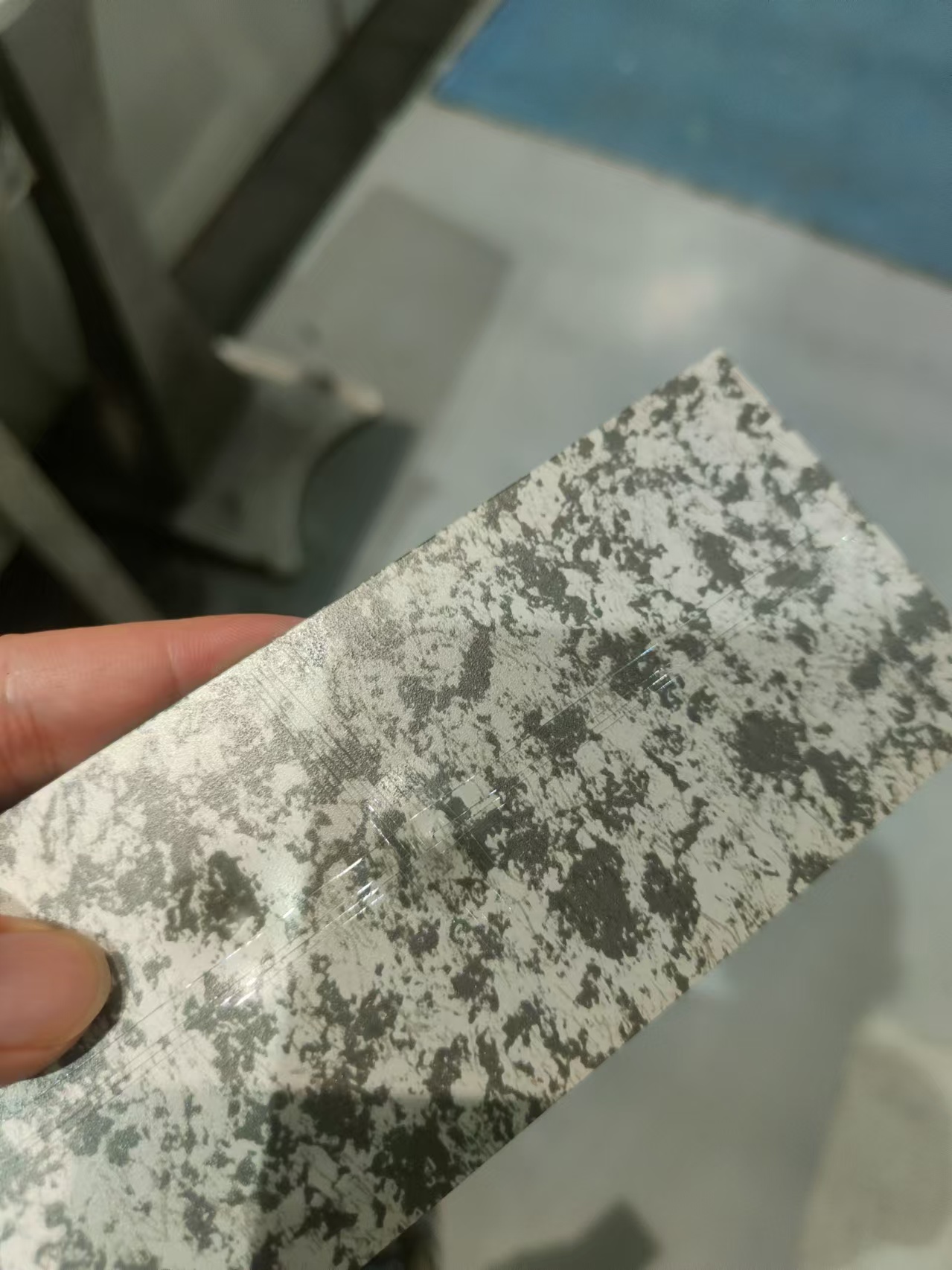

Wood Grain Metal Siding — Another Pre-Finished Pattern Option
